Inner Tube
Oil-resistant NBR synthetic rubber, smooth bore. Compatible with petroleum-based hydraulic oils, fuel oil, lubricants, emulsions, glycol/water-glycol solutions and water.
SAE 100 R2AT / EN 853 2SN

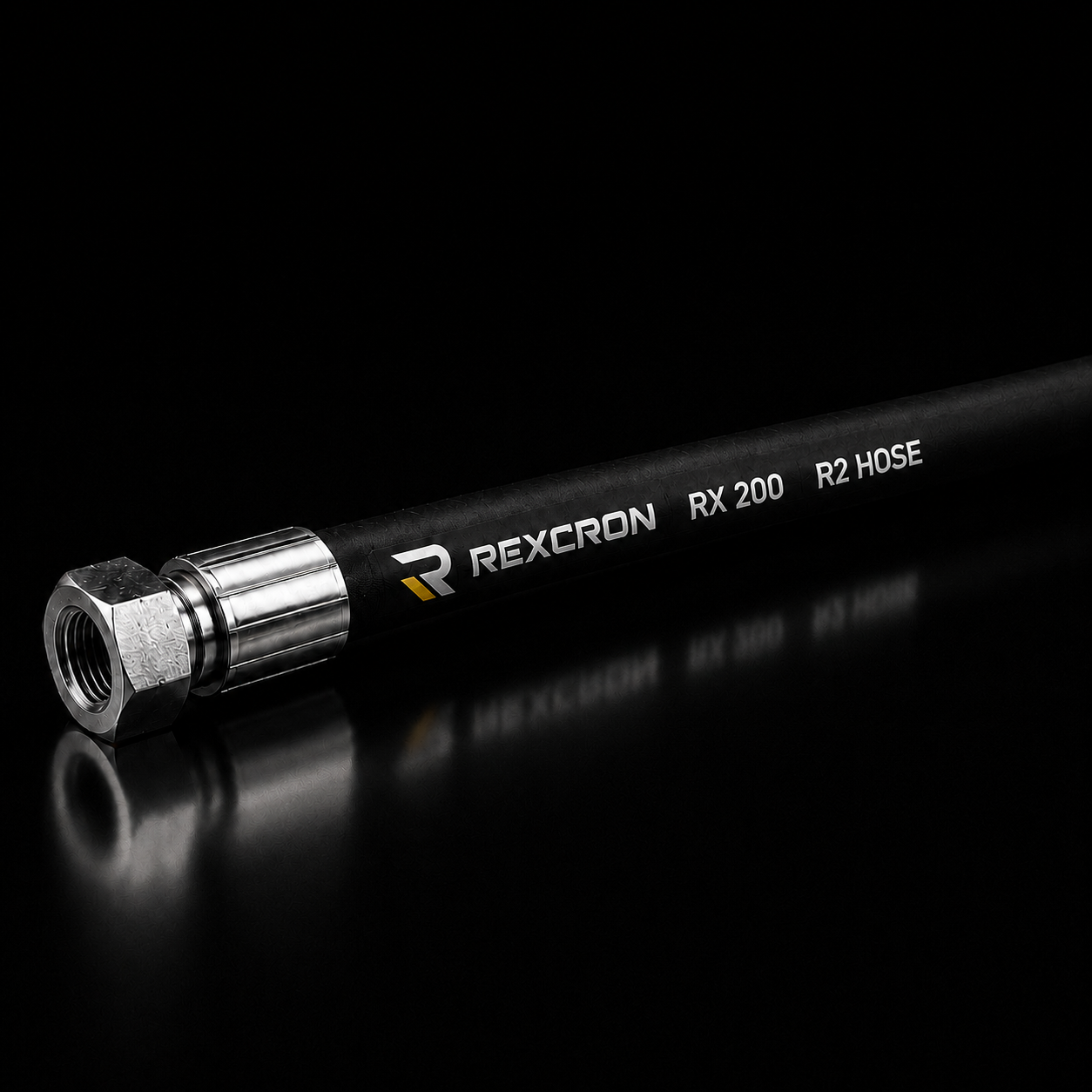

RX-200
Double Wire Braid Hydraulic Hose
- 41.5 MPaMax. working pressure
- −40°C to +100°CTemperature range
- 3/16″ – 2″ · 11 sizesBore range
- StahlCore · SchützCoverConstruction system
Built to the standard it carries.
The RX-200 is a two-wire-braid hydraulic hose for higher working pressures and greater impulse performance than single-braid constructions — in pressure lines for construction equipment, industrial hydraulic systems and mobile machinery. Dual compliance with SAE 100 R2AT and EN 853 2SN makes the product globally specifiable.
- SAE 100 R2AT / EN 853 2SN
- StahlCore™ · SchützCover™
- 3/16″ – 2″ · 11 sizes
StrengeTest verified · Burst tested to 4× working pressure
Three layers. One system.
Inside the RX-200.
StahlCore Reinforcement
StahlCore two-wire high-tensile steel braid — controlled wire grade, winding geometry and layer tension.
SchützCover Outer Layer
Oil- and weather-resistant synthetic rubber cover with resistance to abrasion, ozone, UV exposure and environmental stress.
Applications
- Construction equipment pressure lines
- Industrial hydraulic systems
- Mobile machinery
Technical data
Size-by-size specification.
| Size (mm) | Size (inch) | ID min/max (mm) | OD min/max (mm) | Working Pressure (MPa) | Burst Pressure (MPa) | Min. Bend (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|
| 5 | 3/16 | 4.6 / 5.4 | 12.7 / 14.0 | 41.5 | 166.0 | 90 | 0.32 |
| 6.3 | 1/4 | 6.2 / 7.0 | 14.3 / 16.0 | 40.0 | 160.0 | 100 | 0.36 |
| 8 | 5/16 | 7.7 / 8.5 | 15.9 / 17.0 | 35.0 | 140.0 | 115 | 0.45 |
| 10 | 3/8 | 9.3 / 10.1 | 18.3 / 20.0 | 33.0 | 132.0 | 130 | 0.68 |
| 12.5 | 1/2 | 12.3 / 13.5 | 21.4 / 23.0 | 27.5 | 110.0 | 180 | 0.80 |
| 16 | 5/8 | 15.5 / 16.7 | 24.6 / 26.0 | 25.0 | 100.0 | 200 | 0.94 |
| 19 | 3/4 | 18.6 / 19.8 | 28.5 / 30.0 | 21.5 | 86.0 | 240 | 1.20 |
| 25 | 1 | 25.0 / 26.4 | 37.3 / 39.0 | 16.5 | 66.0 | 300 | 1.35 |
| 31.5 | 1-1/4 | 31.4 / 33.0 | 47.1 / 50.0 | 12.5 | 50.0 | 420 | 2.15 |
| 38 | 1-1/2 | 37.7 / 39.3 | 53.3 / 56.0 | 9.0 | 36.0 | 500 | 2.65 |
| 51 | 2 | 50.4 / 52.0 | 66.0 / 69.0 | 8.0 | 32.0 | 630 | 3.42 |
Published values per SAE 100 R2AT / EN 853 2SN. Burst pressure ≥ 4× rated working pressure. Full tolerance and test detail in the controlled technical data sheet.
One system
Crimp it with Rexcron machines.
Hose and assembly equipment engineered to one standard — build the complete line around the RX-200.
Explore machines
Ready to order?
Spec the RX-200 for your line.
Tell us your size, pressure and application — an engineer will confirm availability and lead time.
